Choose from a variety of adaptor panels. Once you decide on your enclosure, choose your adaptor panels. They snap easily into the Fibre Wall Cabinets, Rackmount Fibre Shelf, and Rackmount Fibre Panels, and enable you to make your fibre patch panel connections.
The adaptor panels feature high-retention phosphor bronze alignment sleeves that work with both multimode fibre and non-angle polish single-mode fibre.

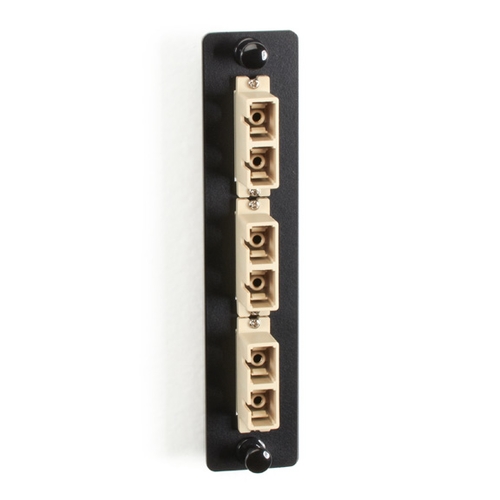

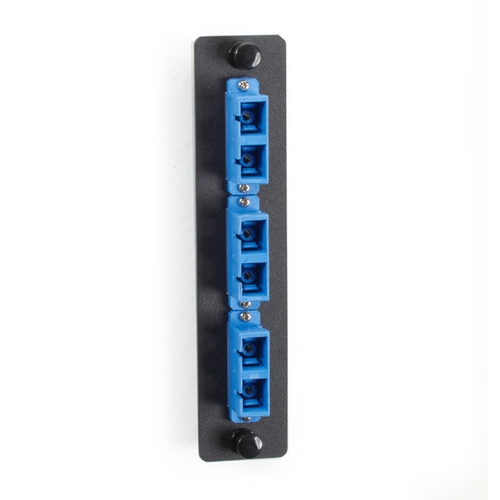

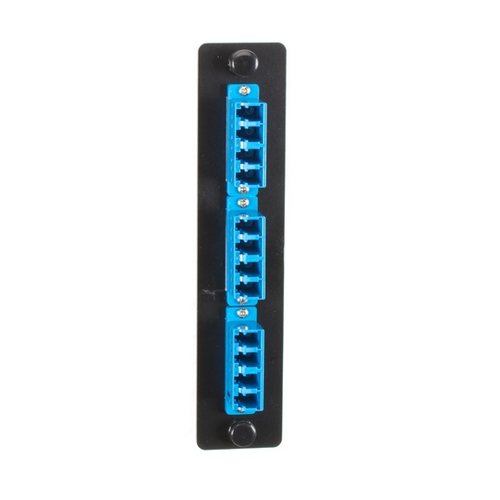

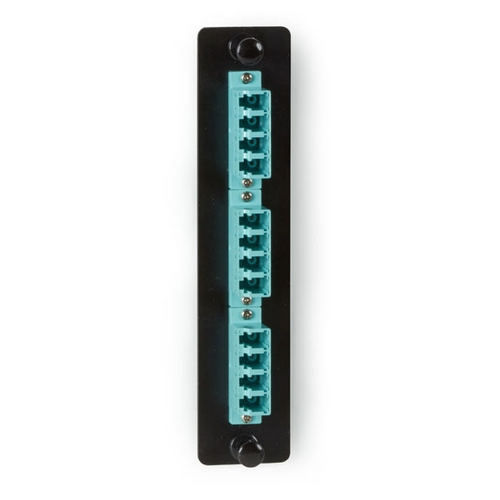

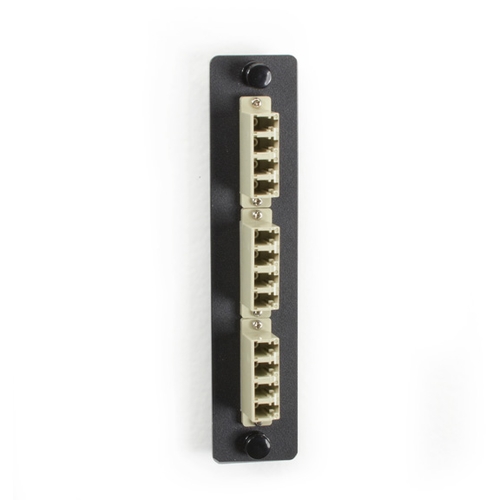

You can order the Low Density Adaptor Panels with three ST® or SC duplex connectors each or six LC connectors each.

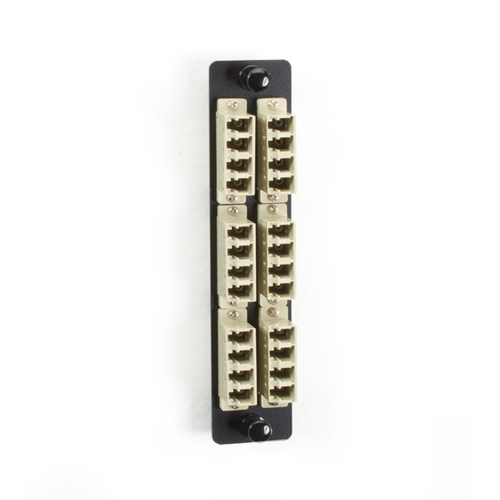

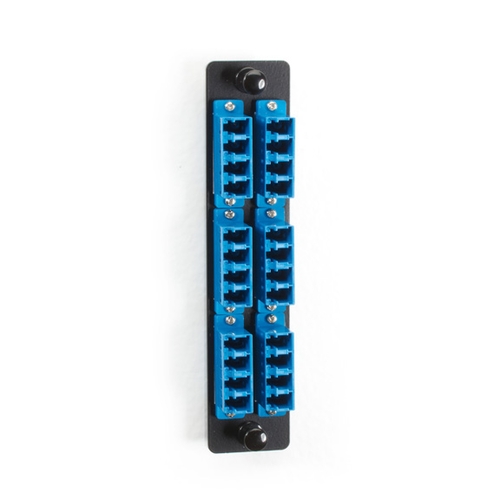

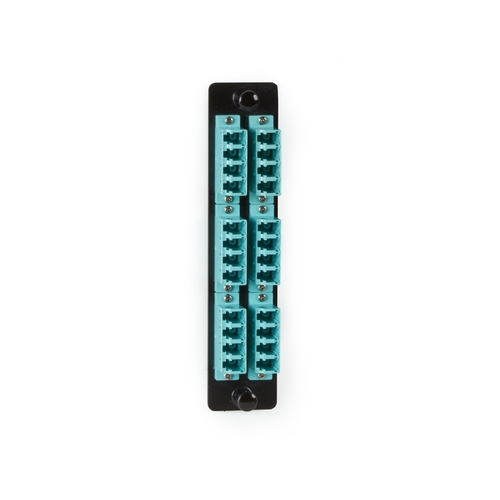

High-Density Adaptor Panels enable you to make even more connections. Choose from a 6-connector duplex SC adaptor panel available in blue, gray, yellow, and orange, a 6-connector duplex ST to SC model (beige); and a 12-connector LC version in beige, or blue. The ST-to-SC panel is used for adapting ST to SC connections, it has six duplex ST pairs on its front and six duplex SC pairs on its rear.
The 4-Pack Jack is an unloaded adaptor panel for four snap fittings or keystone jacks.
LD Adapter Panels, Snap-In
Connectors:
JPM450B: (6) ST; Low-Density
JPM450C: (6) ST; Low-Density
JPM451B: (6) SC; Low-Density
JPM451C: (6) SC; Low-Density
JPM455B-R2: (12) LC; Low-Density
JPM455C-R2: (12) LC; Low-Density
HD Adapter Panels Snap In
Connectors:
JPM460B: (12) ST; High-Density
JPM460C: (12) ST; High-Density
JPM462B-JPM465B: (12) SC High-Density
JPM461C: (12) SC; High-Density
JPM467B-R2: (24) LC; High-Density
Size:13 x 2.8 cm
